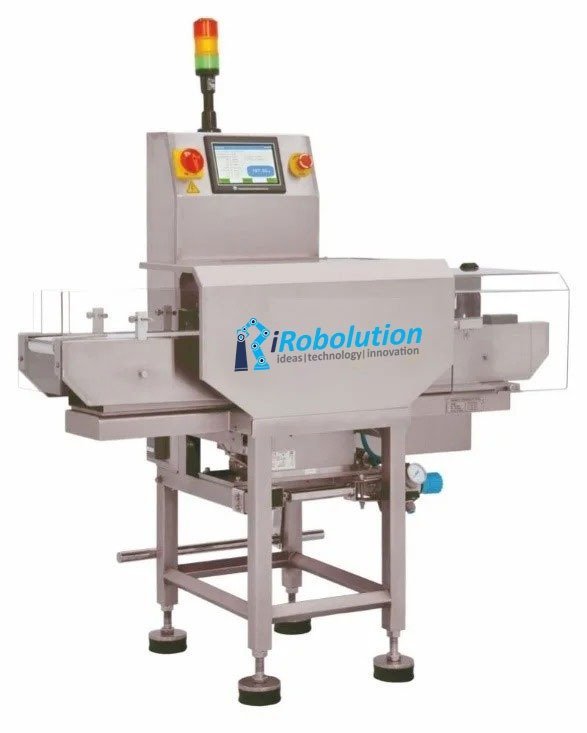

Weight checker unit
Dynamic
weighing systems, particularly checkweigher systems, are essential
tools for verifying the weight of filled packages and sorting out
overweight and underweight items. These systems are especially
valuable in high-speed packing environments, where manual checks
could lead to errors. By ensuring that only correctly weighted packs
reach the market, manufacturers can significantly reduce customer
complaints.
The checkweigher system features three key conveyors: the Entry/Inlet, Weighing, and Exit conveyors. All three conveyors operate at synchronized speeds to maintain efficiency.
The checkweigher system features three key conveyors: the Entry/Inlet, Weighing, and Exit conveyors. All three conveyors operate at synchronized speeds to maintain efficiency.
Working of Weight checker unit:
First, the
Entry conveyor separates the packs adequately, creating sufficient
space between each item. This separation ensures smooth processing
on the subsequent conveyors.
Next, the Weighing conveyor transports the packs at a consistent speed while weighing each pack as it moves. This conveyor's precise control ensures accurate weight measurements.
Finally, the Exit conveyor directs each pack to either the accept or reject side. It is equipped with an effective rejection mechanism. If a pack's weight deviates from the target, the system activates the rejection mechanism to sort out the faulty pack. This process guarantees that only correctly weighed packs are accepted, while incorrect ones are diverted to the rejection area.
Next, the Weighing conveyor transports the packs at a consistent speed while weighing each pack as it moves. This conveyor's precise control ensures accurate weight measurements.
Finally, the Exit conveyor directs each pack to either the accept or reject side. It is equipped with an effective rejection mechanism. If a pack's weight deviates from the target, the system activates the rejection mechanism to sort out the faulty pack. This process guarantees that only correctly weighed packs are accepted, while incorrect ones are diverted to the rejection area.
Weight checker unit Features:
- ARM Controller: Utilizes an ARM controller with digital controls and signal processing for accurate measurements.
- HMI Interface: Includes a user-friendly Human-Machine Interface (HMI) for ease of operation.
- Durable Construction: Features an elegant matt-finish SS 304 body, ensuring long-lasting durability.
- Digital Gain and Filters: Incorporates Digital Gain and Digital Filters to enhance sensitivity.
- Auto Product Tracking: Provides automatic tracking of products to ensure precise handling.
- Three-Level Password System: Includes a three-level password system for advanced functionality and enhanced security.
