The

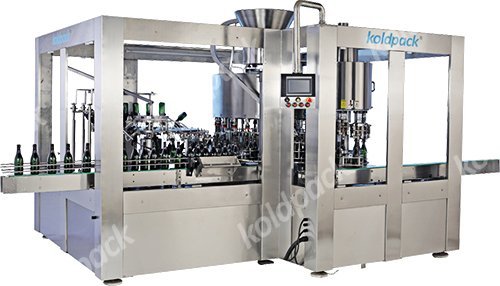

RFC-GLASS FILL Series 3-in-1 Tri-Block Machine
combines a glass bottle rinser, filler, and capper

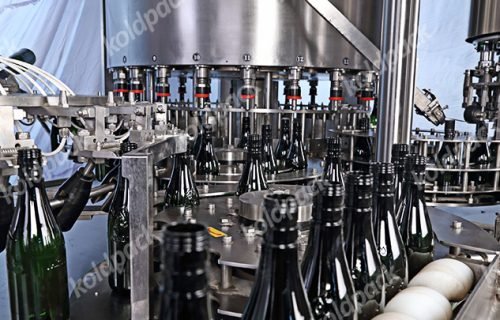

into one advanced unit. It features Ultra-Fill CSD
valves utilizing counter-pressure technology, which
first evacuates air before hygienically filling the
bottle. This ensures a long shelf life for
carbonated soft drinks, beer, and carbonated pulpy
drinks while maintaining the product's flavor. The
counter-pressure filling method eliminates the need
for mesh, allowing for higher production rates and
preserving the quality of the
product.
This fully automatic machine integrates washing, filling, and capping functions into a single system, equipped with cutting-edge man-machine interface technology and PLC automation. It includes specialized ROPP or CROWN-type capping heads, making it adaptable to various bottle types. The RFC-GLASS FILL Series delivers efficient and reliable performance for glass bottle processing.
This fully automatic machine integrates washing, filling, and capping functions into a single system, equipped with cutting-edge man-machine interface technology and PLC automation. It includes specialized ROPP or CROWN-type capping heads, making it adaptable to various bottle types. The RFC-GLASS FILL Series delivers efficient and reliable performance for glass bottle processing.
Salient Features
- Features UHMWPE change parts for durable and efficient bottle handling.
- Includes an AC drive for smooth outfeed and an optional inspection table with lighting and a white-black background.

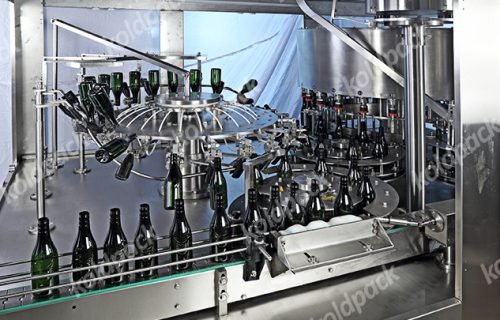

- Ensures smooth operation at the rinsing station with minimal wear on glass bottles.
- Operates with a precise no-bottle, no-rinse, no-fill, no-cap system.
- A state-of-the-art design eliminates blowers, reducing the risk of cap contamination.
- Managed by an AC drive for precise speed regulation.
- Features a touchscreen panel with a variable-speed AC drive for optimal speed control during production.
- It accommodates all bottle sizes, ranging from 200 ml to 1000 ml.
- Includes an optional automatic cap elevator for efficient feeding to the chute.
- Ensures precise and reliable capping.
- The stainless steel enclosure provides a fully hygienic bottling environment.
- Nozzles are easily openable for straightforward cleaning.
Technical Specifications
| Model | KRFC-40-GF | KRFC-60-GF | KRFC-90-GF | KRFC-120-GF |
|---|---|---|---|---|
| No. of Heads | 8-8-4 | 12-16-6 | 18-18-6 | 24-24-8 |
| Capacity @ 1000 ml. | 2400 BPH | 3600 BPH | 5400 BPH | 7200 BPH |
| Rinsing Water Consumption @ 0.2 ~ 0.25 Mpa | 200 Ltr / hr | 350 Ltr / hr | 500 Ltr / hr | 700 Ltr / hr |
| Compressed Air Consumption @ 4 to 6 Bar | 2.5 CFM | 2.5 CFM | 3 CFM | 3.5 CFM |
