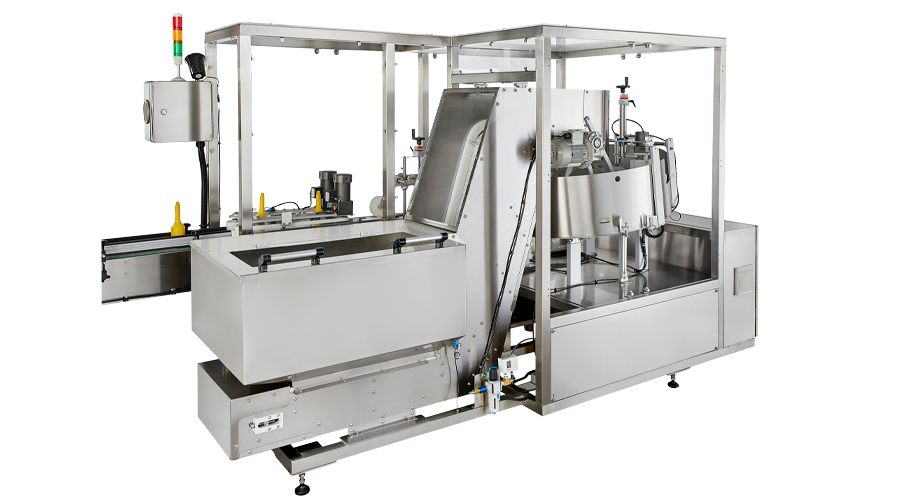

Bottle Unscrambler
A
Bottle Unscrambler is a linear machine designed to
feed oriented bottles into the production line
efficiently. This equipment is ideal for saving
labor, eliminating the need for employees to
manually sort and stand bottles upright on a
conveyor. It handles various bottle shapes and sizes
with ease. The Koldpack Bottle Unscrambler operates
simply, efficiently, and with minimal maintenance.
If you need a reliable bottle unscrambler, our
products will meet your needs. Contact Koldpack for
more information.
Working:
Bottles
are loaded into a hopper and then transported to a
centrifugal disc via an elevator. Inside the disc,
bottles move to the orientation area. The Bottle
Orientating Hook grabs each bottle's neck to correct
its position. After this, the bottles are stabilized
and placed onto the exit conveyor. The Koldpack
Bottle Unscrambler is versatile, handling a wide
range of plastic bottles. Mechanical adjustments
feature numeric counters for easy and repeatable
changes.
Features:
- Handles cylinders, squares, and rectangular bottles.
- PLC-controlled with a touch screen panel for easy access to settings.
- Allows fast and simple format changes.
- Constructed from stainless steel and plastic for bottle contact.
- Operates simply—no specialized personnel required.
- Capacity varies based on the filling line.

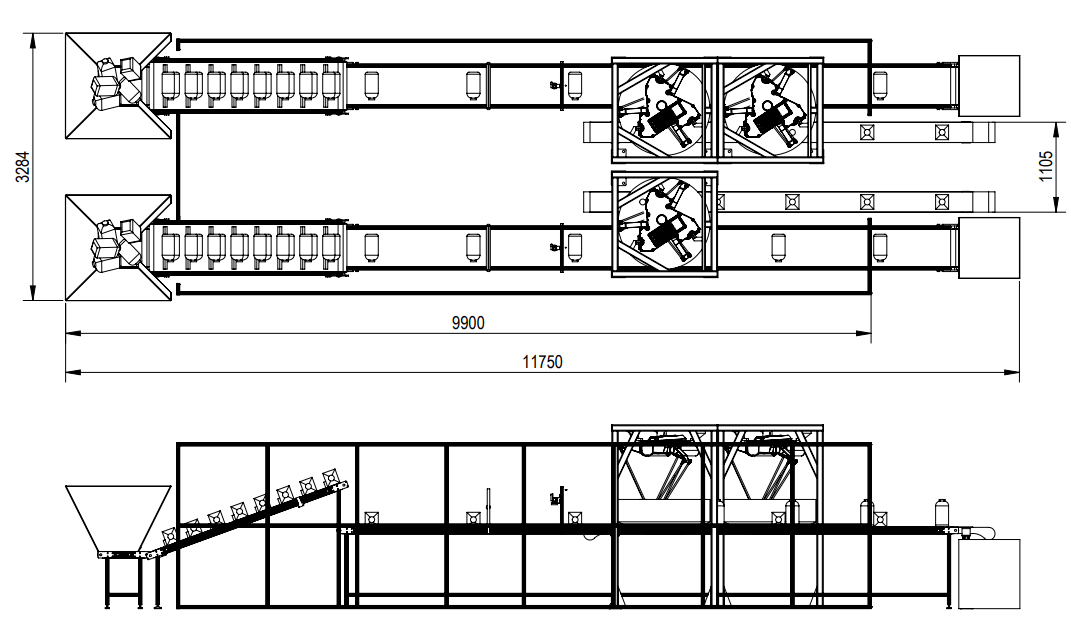

Robotic Unscrambler
The
iR-unscrambler is a robotic system that reorients
plastic bottles into a vertical format after washing
or other processes, preparing them for the inline
filling system. The design of the system considers
factors such as bottle shape, size, speed, base
stability, and complexity. iRobolution offers a
range of robots, including SCARA, articulated
six-axis, and delta pickers, to provide the best
solution at the most cost-effective price.
Why iR-unscrambler:
- Features unique design and optimal robot selection.
- Utilizes specific Vision software tailored to the solution.
- Advanced gripper technology handles both single and multiple bottles.
- Compact footprint.
- Requires minimal part changes.
- Equipped with an advanced control system that provides alarms and warning messages.
iR-unscrambler includes:
- Custom-built robots from well-known brands.
- Innovative gripper design (iGripp Technology) for various bottle sizes.
- Appropriate hopper and conveyor for bottle separation.
- Options for air conveyor or puck-type conveyor.
- Control system compatible with Industry 4.0.
Application:
- Ideal for handling bottles in pharma, personal care, home care, and pesticide industries.
- Designed to prevent scratching or rubbing.
